smart led panel light LP

Short Description:

Benefits of lighting control smart light panels:

►Bluetooth mesh smart control led tunable white panel light offer a new lighting solution.

►Dimmable 5%~100% and CCT adjustable 2700K~6500K

►With motion sensor and daylight harvesting optional

►controlled by APP, remote control,sensor and smart wall switch

►The back-lit technology makes the life longer,no longer limited to the LGP.

►Significantly reduce subsequent maintenance costs, and competitive cost.

►It provides high uniformity, excellent efficiency and reduced glare in T-grid ceiling applications.

Feature and Function Bluetooth APP Control

Easily add and manage lamps and smart switches and sensor

►control and manage group lamps

►Set lighting scenes.

►Manage timer tasks.

►Configure delay time of human motion sensor.

► Configure group linkage control.

►Manage lamps of different areas in one smartphone.

►Share control privilege among smartphones

►Assign different privileges to staff to manage lamps.

►Compatible with most Android phones and IOS phone

5 year warranty high cra0-10Vwide beamvoltlonglifeHigh lighting efficienclpwypirble meshdaylight haresting

Product Detail

Product Tags

What Function Does Good-Life Smart Office Panel Light Bring

CCT2700-6500K dimming 1

Features of Tunable white LED Panel light :

►Back light panel with pmma lens with 10 years life.

►Warranty: 5 years.

►Input Voltage: 100-277Vac | 0-10V/BLE mesh/Dali dimmable | PF>0.9 | THD<20.

►High efficiency, up to 135lm/W RA:80.

►45mm thickness, driver on the side frame.

►50,000hrs life design for driver and LED.

►Smart dimming or color tuning for optional 2700K~6500K

► BLE Mesh smart control, with option of motion and daylight harvest 2-in-1 sensor.

Why does Good-Life Smart office lighting make CCT adjustable and dimming?

human centric lighting

Color temperature can be adjustable dynamically in whole day
Blue spectrum have big impact on our living clocks. Color temperature 5300K and above can improve people’s efficiency in daylights and Color temperature warm white 3000K and below is better for night time.

How Does Good-Life Smart office panel Light Work

How does Good-Life Smart office panel Light control

How does Good-Life Smart office linear lighting work
smart control system

How Does Good-Life Smart office linear Light Distribution curve apply for

distribution curve
beam angle

Product Construction


Optional built-in sensor for PIR&daylight harvest sensor & 2 in 1 sensor

built-in sensor

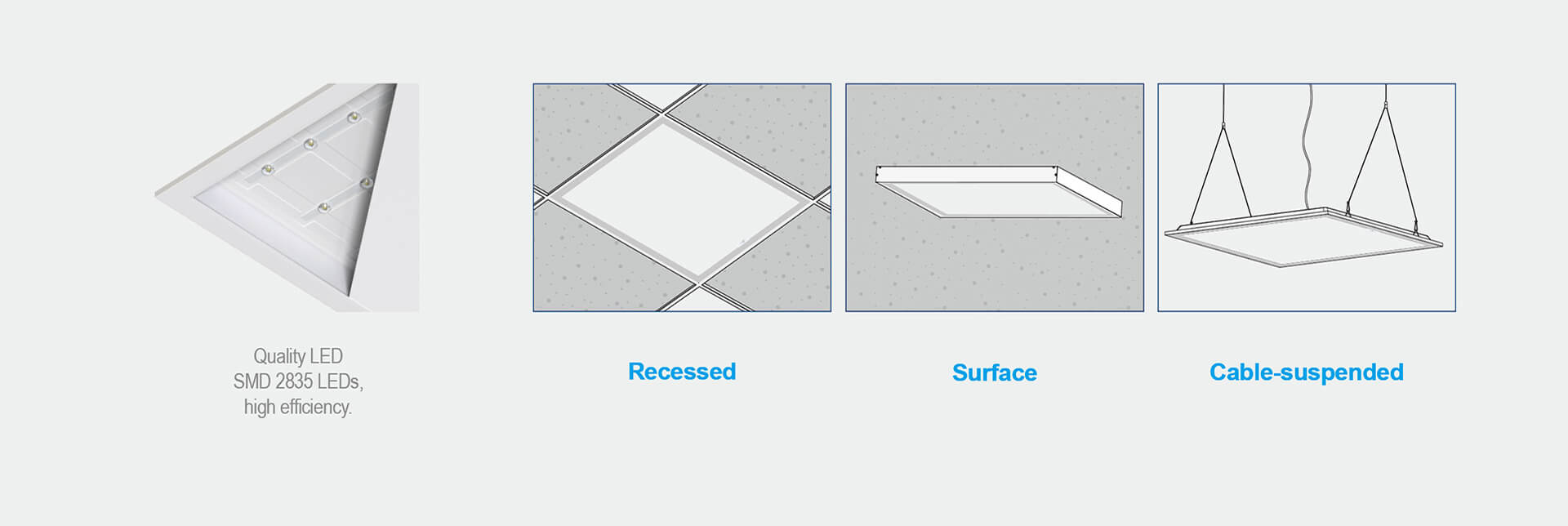

How to install

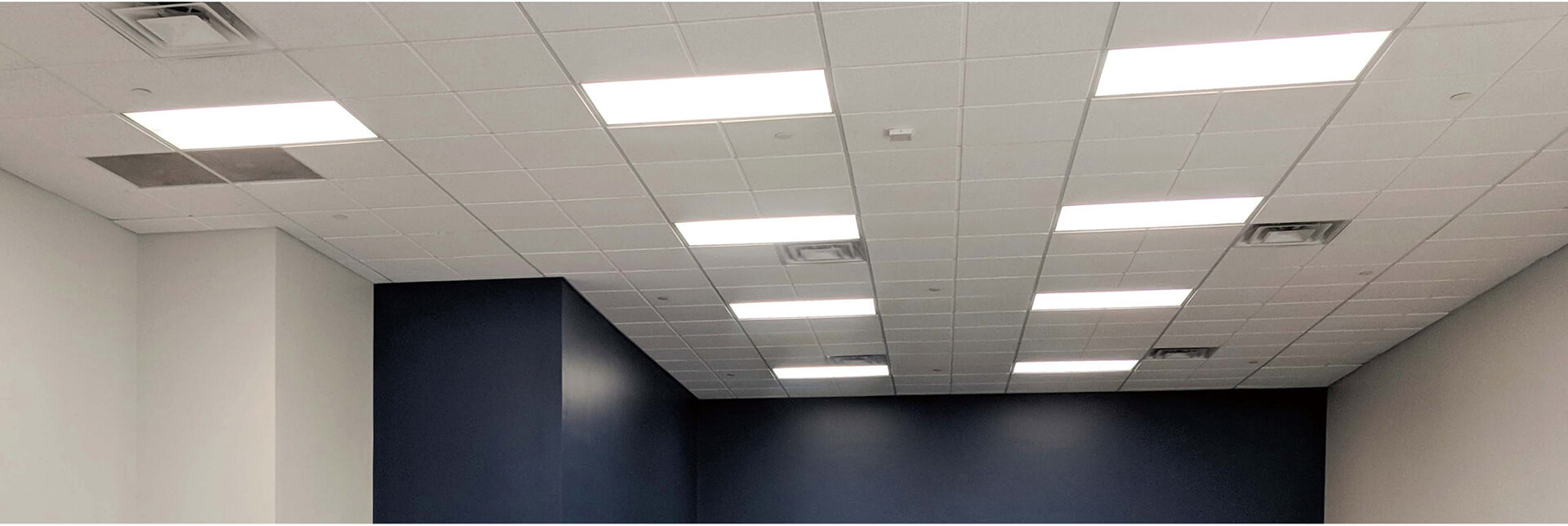

Application Case

how to install

Product Datasheet

Model LP2412 LP4022 LP4014
Size(ft)/(mm) 1*2/295*295 2*2/595*595 1*4/295*595
Power(w) 24W 40W 40W
Lighting efficiency 90-130LM/W
CRI Ra 80+
LED class P195.50K
CCT 300K/5000K/2700~6500K optional
Dimming BLE MESH/DALI/0-10V
Input voltage 100-277Vac 50/60Hz
Lifetime 50000hours@L70    5year warranty
IK IK 02
Operating Temp. -20℃ to +40 ℃
Lamp Color RAL White (RAL 9003)
Beam angle 120°
Built-in sensor PIR&Daylight harvest & 2 in1  optional
Pack Size 380*380*370mm/4pcs 680*680*370mm/4pcs 1290*380*370mm/4pcs

For more about how to work and what Good-Life smart Street Lighting bring us, please visit

If you have owned smart system, we can provide API for your integration or we can customize products with your assigned bluetooth/zigbee module,such as Casambi,inSona,etc
